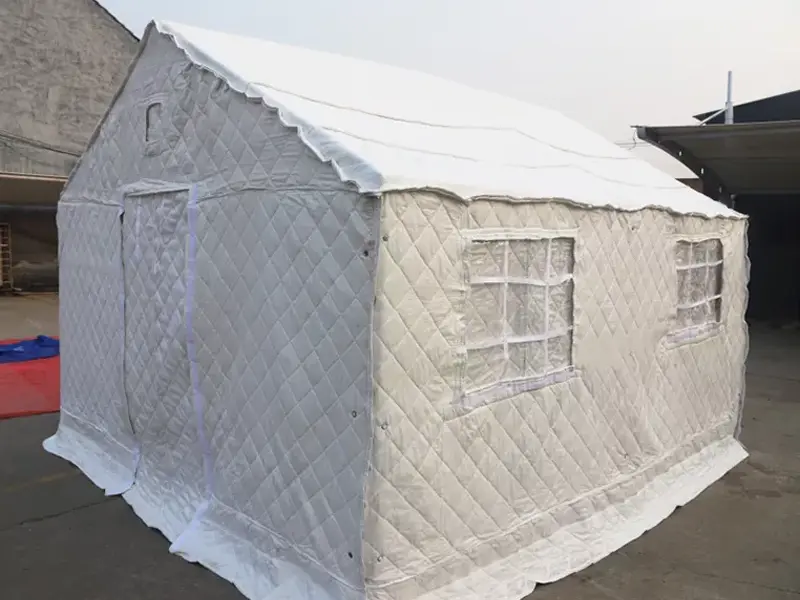

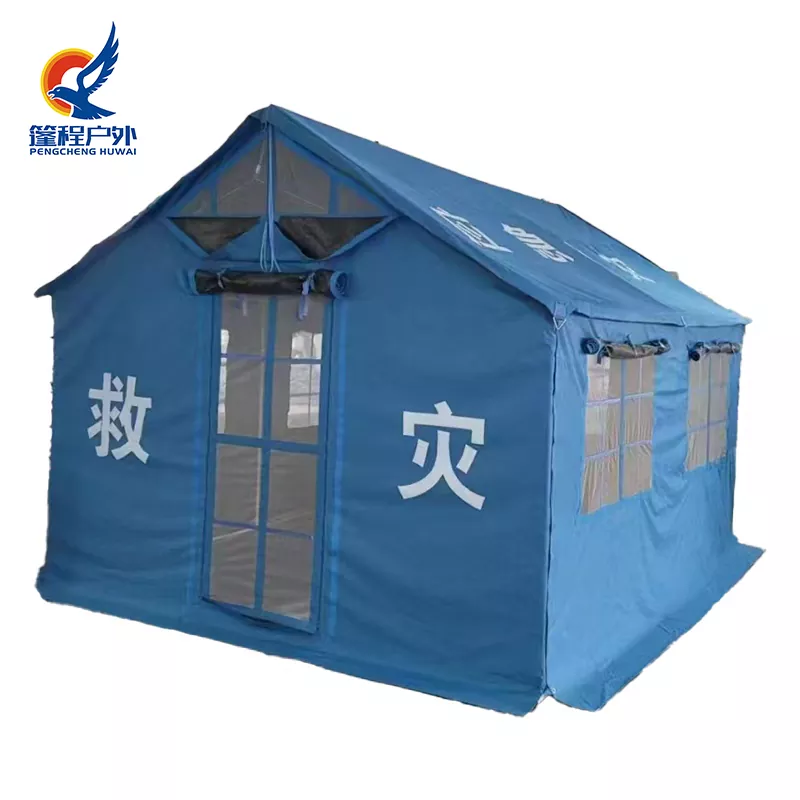

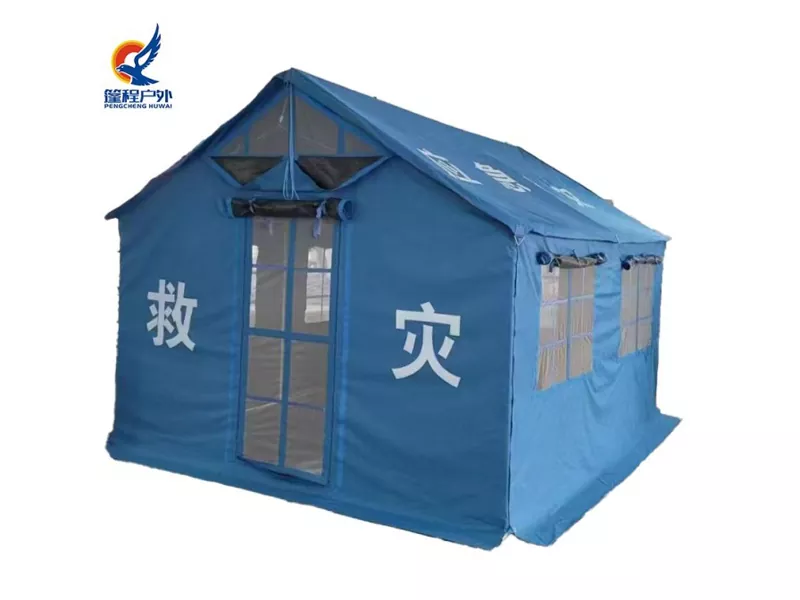

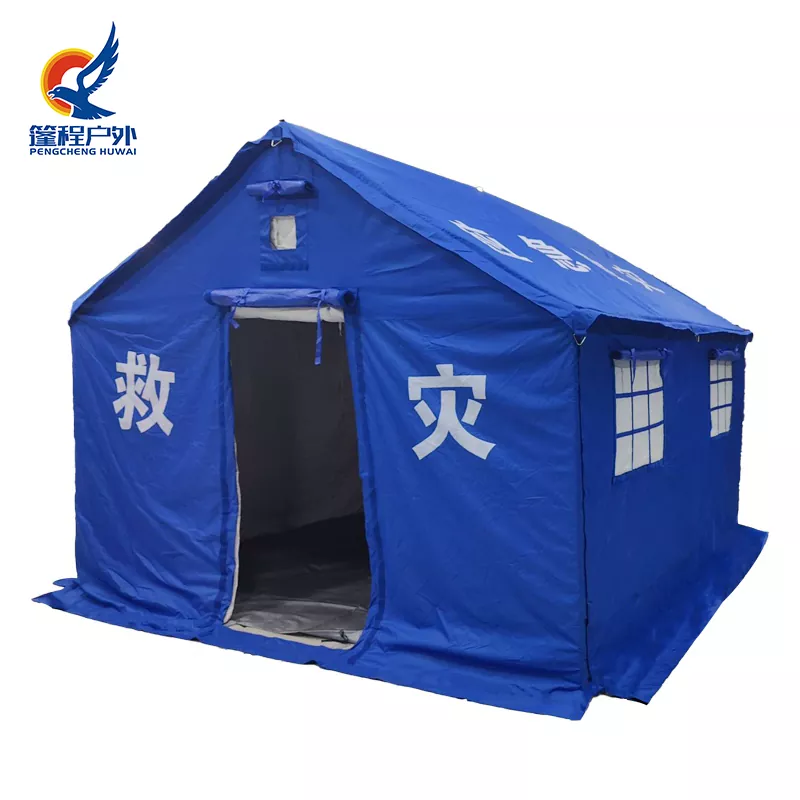

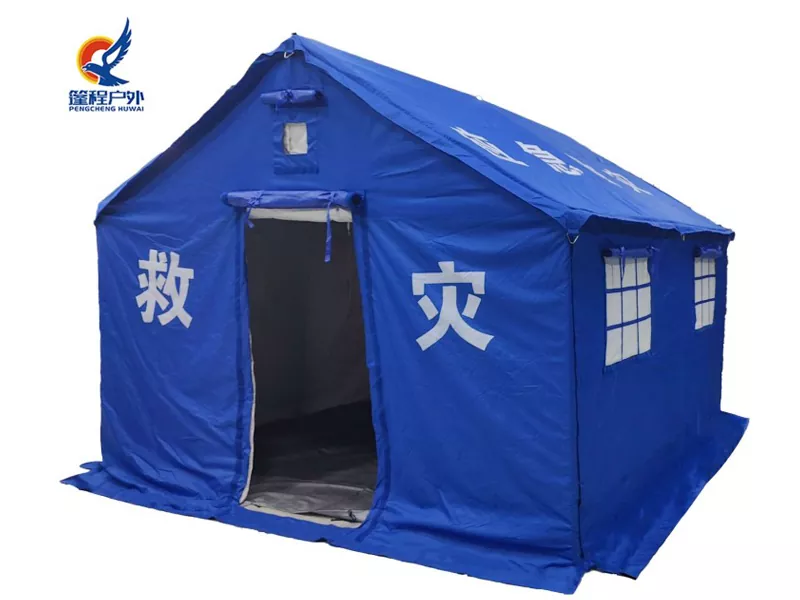

Pengcheng Outdoor's 12㎡ Tantunan Taimakon Bala'i na Gaggawa an karkasa su zuwa nau'i biyu: 12㎡ Tantin Taimakon Gaggawa Guda (National Standard/Non-Standard) da 12㎡ Tantin Taimakon Gaggawa na Auduga (National Standard/Non-Stand). Tare da girma na 3.2m (nisa) × 3.7m (tsawo) × 1.75m (tsawon eave) × 2.67m (tsawo mafi girma), duk tantunan sun ɗauki babban matakin hana ruwa da masana'anta na wuta tare da ingantaccen tsarin ƙarfe, yana ƙaruwa da ƙarfi ta 50%. Yana nuna ƙirar ƙira, suna da sauƙin kulawa kuma suna haɗuwa da sauri.
|
Girman |
Nisa 3.2m * Tsawon 3.7 * Tsayin gefe 1.75m * Babban tsayi 2.67m |
||||
|
Nau'in |
Kayan TARP da kayan mafitsara auduga |
Kanfigareshan |
Stent |
Nauyin tanti |
Nauyin sashi |
|
Matsayin ƙasa |
Tarpaulin: 666dtex X 666dtex PVC yarn polyester mai gefe guda ɗaya Auduga gallbladder: 400g farin auduga siliki masana'anta na ƙasa: 555dtex × 555dtex Zaren polyester mai gefe biyu |
Kofa ɗaya mai tagogi huɗu (600mm * 800mm) Gaba da baya tare da buɗewar bututun hayaƙi Buga a ɓangarorin biyu na rufin: Taimakon Gaggawa Buga a ƙofar: Taimakon bala'i |
Ƙarfin duniya: 25mm * 1.2mm (18 guda) Tushen: 25mm * 1.2mm ( guda 6) Matsakaicin ƙasa: 25mm * 1.2mm (2 guda) Na'urorin haɗi guda uku: φ28mm * 1.0mm (6 guda) Na'urorin haɗi guda huɗu: guda 3 tare da diamita na 28mm * 1.0mm Na'urorin haɗi na ƙasa: 6 guda tare da diamita na 28mm * 1.0mm Kusoshi na ƙasa: guda 8 Babban sashi yana ɗaukar fasahar fenti |
Jikin tanti: 36kg Mafitsara auduga: 28kg (± 0.5kg) |
44.5kg ± 0.5kg |
|
Mara daidaito |
600D PVC mai kauri mai kauri Tufafin Oxford mai rufi tare da m Auduga gallbladder: 400g farin auduga siliki Ƙarƙashin ƙasa: PE masana'anta |
(± 0.5kg) Jikin tanti: 28kg Auduga gallbladder: 26kg (± 0.5kg) |
38kg ± 0.5kg |
||
|
600D talakawa blue PVC Tufafin Oxford mai rufi tare da m Auduga gallbladder: 300g farin auduga siliki Ƙarƙashin ƙasa: PE masana'anta |
(± 0.5kg) nauyi: 25kg Auduga gallbladder: 22kg (± 0.5kg) |
38kg ± 0.5kg 30kg ± 0.5kg |
|||
|
600D talakawa blue PVC Tufafin Oxford mai rufi tare da m Auduga Layer: 240g farin siliki auduga Hanyar auduga hade |
Kofa ɗaya mai tagogi huɗu (600mm * 800mm) Gaban bututun bututun hayaki Buga a ɓangarorin biyu na rufin: Taimakon Gaggawa Buga a ƙofar: Taimakon bala'i |
28kg ± 0.5kg |
30.5kg ± 0.5kg |
||
|
Matsayin ƙasa |
333dtex × 333dtex polyester yarn Tufafin Oxford mai rufi tare da m Auduga Layer: 300g farin siliki auduga Ƙarƙashin ƙasa: PE masana'anta |
Kofa ɗaya mai tagogi huɗu (600mm * 800mm) Gaba da baya tare da buɗewar bututun hayaƙi Buga a ɓangarorin biyu na rufin: Taimakon Gaggawa Buga a ƙofar: Taimakon bala'i Bugawa a gaba da baya kololuwar dutse: China Dauke tutar ƙasa |
Ƙarshen duniya: 25mm * 1.8mm (18 guda) Tushen: 25mm * 1.8mm ( guda 6) Ƙarƙashin ƙasa: 2 guda na 25mm * 1.8mm a diamita Na'urorin haɗi guda uku: φ28mm * 1.0mm (6 guda) Na'urorin haɗi guda huɗu: guda 3 tare da diamita na 28mm * 1.0mm Na'urorin haɗi na ƙasa: 6 guda tare da diamita na 28mm * 1.0mm Kusoshi na ƙasa: guda 8 Aluminum alloy bracket |
Yawan nauyi: 60kg ± 0.5kg |
|
|
Mara daidaito |
300D Blue PU Tufafin Oxford mai rufi tare da m (Ba mai hana wuta ba) Auduga Layer: 300g farin siliki auduga Ƙarƙashin ƙasa: PE masana'anta |
||||
|
Abubuwan da ke sama sune sigogin tanti na auduga 12㎡ don ceton gaggawa na yau da kullun. Za a iya keɓance madaidaicin, masana'anta, da aikin aiki bisa ga bukatun abokin ciniki. |
|||||
A matsayin ƙwararriyar masana'antar tantin agajin gaggawa ta kasar Sin, Pengcheng Outdoor's 12㎡ Taimakon Bayar da Agajin Gaggawa na Gaggawa yana ɗaukar masana'anta mai ƙarfi mai ƙarfi da hana ruwa tare da ingantaccen tsarin ƙarfe, yana ƙaruwa da ƙarfi da 50% da jurewar matakin 8 gales. Zane-zane na zamani yana ba da damar haɗuwa da sauri da sauƙi mai sauƙi. An sanye shi da tagogin iska da alamun gaggawa, yana saduwa da buƙatun yanayi da yawa kamar cibiyoyin umarni, tashoshi na likita, da matsugunan gaggawa.Bayanai na samarwa1. Core Specifications and Performance of 12㎡ Emergency Disaster Relief Tents· Space and Structure: Standard rectangular double-slope vertical wall structure with dimensions 3.7m (length) × 3.2m (width) × 2.67m (peak height) × 1.75m (eave height), covering 12㎡ of usable area and accommodating approximately 5 mutane na dan lokaci. Firam ɗin yana da ƙirar filogi tare da sandunan giciye na ƙasa don tabbatar da aminci a cikin iska mai ƙarfi.
Fabric: Yawanci 300D/600D PVC mai rufin zane ko kayan makamancin haka, yana nuna ƙarfin juriya, juriyar hawaye, juriyar tsufa, da aikin hana ruwa.

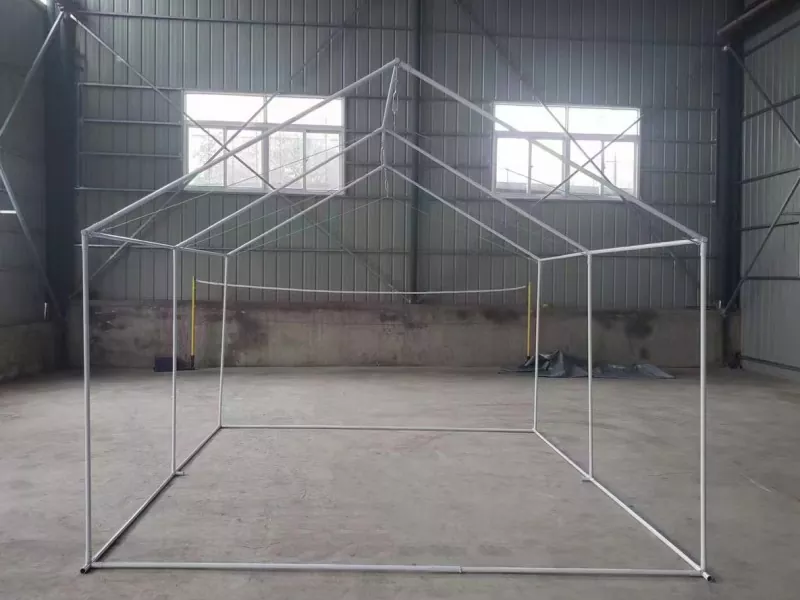

Stent: Manyan sanduna (misali, sanduna na duniya, madaidaiciya) an yi su ne da bututun ƙarfe da aka welded tare da diamita na kusan 25mm.
Taro da Kulawa: An ƙera don dacewa—mutane 2 za su iya kammala taro cikin kusan mintuna 15. Kulawa yana da sauƙi, galibi ya haɗa da tsaftace tanti, duba ruwan tsaye bayan ruwan sama, da bushewa akan lokaci.
A matsayinsa na mai kera tanti na gaggawa na kasar Sin, Pengcheng Outdoor yana da yawan samarwa da iya samar da kayayyaki.
Production Qualifications and Equipment: Equipped with a range of advanced professional production equipment, including robotic welding machines, large numerical control quilting machines, and numerical control hot-melt machines. Tare da hedkwatarta a Tangshan da rassa hudu a Xi’an, Yishui, Yongqing, da Shenyang, mun kafa wata hanyar sadarwa mai aiki da ta shafi Shaanxi, Shandong, Hebei, Liaoning, da sauran lardunan kasar baki daya, tare da tabbatar da samar da kayayyaki da kuma wadata.
Takaddun shaida: Samfuran mu sun ci nasara ga ayyukan sayan kayan agaji na gwamnati da yawa, suna bin ka'idodin ƙasa ko masana'antu masu dacewa (misali, ka'idodin jerin MZ/T 011).
